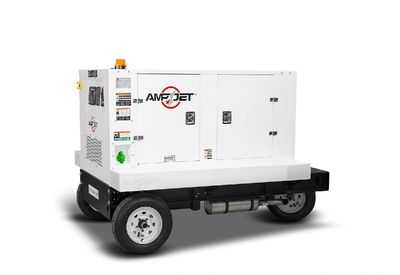

AmpJet 45 /60D

 AMPJET delivers dependable performance every time. Designed for demanding environments, our GPUs provide clean, consistent power that meets the highest industry standards. With advanced control systems and proven reliability, AMPJET keeps your operations running smoothly — wherever the job takes you.

AMPJET® units use a proven Genset Controller trusted across industries for years. Operating the GPU is as easy as "PUSH-A-BUTTON", making every start-up smooth and efficient — even for first-time users.

The AMPJET® series of diesel-powered 400Hz AC Ground Power Units (GPUs) offers a cost-effective alternative to running the aircraft APU.

Available in 30, 45/60, 90, 120, 140, and 180 kVA, these GPUs are World-Ready — with multiple engine options to meet a wide range of local emission standards.

Built for extreme environments, AMPJET GPUs are proven performers in:

· Scorching Desert Heat

· Freezing Arctic Conditions

· Heavy Tropical Rains

Wherever Your Operations Go, AMPJET Performs.

  Technical Specifications

• Simple “PUSH-A-BUTTON” Start / Stop
• Output Power:  45 / 60 kVA, 400 Hz AC
• Alternator (Brushless, Single Bearing): HCP34
• Engine Speed RPM: 2000 (1846)
• Engine Options: Perkins, Deutz (Tier 3), Perkins, Deutz & JCB (Tier 4F)
• Voltage Regulation: 115V/200V ± 1%
• Frequency Regulation: 400 HZ ± 0.5%
• Protection: Over/Under Voltage, Over/Under Frequency, Overload
• Line Drop Compensation: Automatic
• Cooling: Liquid
• Fuel Capacity: 124 L (32.75 Gal)
• Operating Time Per Tank:  10 hours
• Fuel Type Tier 3: Diesel / Jet A
• Fuel Type Tier 4F / Stage 5: Low Sulfur Diesel
• Dimensions  LXWXH : 2.97X1.7X1.68 M (117X68X67 in.)
• Weight: 1500 KG (3300 lb.)
• Noise Level: 85 dB(A)
• Warranty: 2 Years / 2000 Hours
• Temperature: -40°F to 125°F (-40°C to +52°C) W/ Extreme Cold Weather Kit Option
• High Altitude Performance

Features - Standard

• Simple “PUSH-A-BUTTON” Start / Stop
• Smart Digital Genset Controller with 5″ Color Display
• Real-time monitoring of 7 critical parameters
• Electrical control panel access
• Main Control Panel with Weather Cover
• Auto Warm-up, Cool-down & Auto-Sleep
• Battery Shut-off Switch
• Low Fuel Alarm
• Fuel & Visibility Beacons (Amber / Red)
• Heavy-duty 14  gauge Sheet Metal Enclosure - Easy Access
• Primer - Powder Coated Zinc Primer - All Exterior Sheet Metal
• Standard Colors
• Top Coating - Powder Coated
• Rugged 5/16″ Steel Chassis
• Steering - Easy Maneuver 5th Wheel
• Solid Axle & Pneumatic Tires
• Forklift Pockets (8″×4″ / 203×102 mm)
• 4X Extreme-Duty Rubber Engine & Generator Mount Isolators
• Hitch - Heavy Duty Lunette Eye
• Tie Down Rings - 2 Front / 2 Rear
• Rugged 13” deep main frame rails
• Wheels - Easy Pull 12" (305mm)

Feature - Engine (Select)

Choose GPU Engine Emission Requirement and Output Power

• Tier 3: Perkins 1104D, Deutz BFL
• Tier 4F / Stage 5: Perkins 1204, Deutz TCD  & JCB

Feature - Cable (Select)

• 30′ (10 m) 4X 2/0  MIL-STD-5356-C with Connector
• 30′ (10 m) 4X 2/0 W with Connector
• 30′ (10 m) 2 X 4/0 MIL-STD-5356-C with Connector (for DC TR Only)
• Quick Breakaway Power Cable with Swivel Base (Option - for DC TR)
• Custom Cable Lengths Available (Option)

Feature - Engine Protection

• Delayed Stop Turbo Protection
• Full Application Approval
• Over Speed Protection
• Full Flow Fuel Filter
• Full Flow Lubricating Oil Filter
• Muffler
• Engine Diagnostics
• Engine Preheater
• Low Oil Pressure Shut Down Switch (SDS)
• High Temp. Water (SDS)
• Low Fuel Warning

Feature - Safety

• Emergency Stop (E-Stop)
• Fire Extinguisher (Option)
• Visibility Beacon
• Corner Reflectors: High-intensity visibility at Night (10X)
• 4 Corner Marker Lights
• Noise Reduction/Sound-suppression foam installed throughout engine compartment
• Parking Brake: Tow-bar-activated -Adjustable

Features - Control System

• Controller Type: Intuitive digital controller with integrated monitoring and diagnostics
• User Interface: 5-inch color display providing seven (7) key operating metrics at a glance
• Operation Controls:
  • Simple “PUSH-A-BUTTON” Start and Stop functions
  • Main System Power Switch
  • Warning Beacon and Marker Lights Switch
  • Primary Output Controls
  • Secondary Output Controls (option)
  • DC Output Controls (available with DC option)
  • AC/DC Selector Switch (available with DC option)
  • E+F Bypass Switch (covered)
  • Current Limiting Switch (DC option only, covered)

Features - Monitoring & Display

• Engine Monitoring:
  • Battery Voltage
  • Water Temperature
  • Oil Pressure
  • Fuel Level
  • Tachometer (RPM)
  • Hour Meter
• Power Output Monitoring:
  • Output Voltage
  • Frequency
  • Power (kW/kVA)
• DEF (Diesel Exhaust Fluid) Status Indicator

Features - Diagnostics & Data

• Troubleshooting Display: Active warnings and system fault messages displayed in real time
• Wiring Identification: Fully numbered wiring harness with corresponding wiring diagrams for easy service
• Operational History: Internal log of operating hours, start cycles, and fault events
• Battery System: 12V, 1000 Amp CCA battery for engine starting and control power

Options - Available

• 28 VDC TR (Transformer Rectifier)
• 28 VDC TRU Simultaneous (AC/DC Output)
• 56 VDC TR (Transformer Rectifier)
• 270 VDC TR (Transformer Rectifier)
• Digital Gateway / Telematics (GPS/GSM) (Cell/Network link) (Monitor GPU Track on GPS,      Receive Messages / Notifications on Mobile or Email)
• Premium Engine Warning Kit
• Auxiliary 115 VAC, 60 Hz Output
• Stainless Steel Enclosure
• Stainless Steel Fuel Tank
• Corner Bumpers
• Cable Tray Rollers
• Foam-Filled Tires
• Low Coolant Shutdown SDS
• Cable-Connected Warning System (Strobe)
• Battery Switch (Required with Cable Connected Warning System)
• Fire Extinguisher
• Quick Break Away Output Cable
• Towbar Warning System
• Towbar Lock System
• Torsion (Flexible) Rear Axle
• Aux. Battery with Battery Separator

 Options - Cold Weather Kit (CWK)

Includes: Glow Plugs, Battery   Warmer, Block Heater (various part, numbers, inquire)

• Cold Weather Kit (CWK): Tier 3,  Tier 4F / Stage 5
• Extreme CWK:  Tier 3, Tier 4F / Stage 5
• Custom Engine Kits Available (on request)

Feature - Warranty & Support

Every AMPJET® GPU is designed and assembled in Canada, built for long service life and dependable operation.

Warranty: 2 Years / 2000 Hours (whichever comes first)

Service & Support: Worldwide parts availability and optional telematics monitoring for real-time performance tracking.
