Now you’re in control - AMPJET revolutionized ground power units. Setting a new standard in simplicity and ease of use, and ruggedness. materials to ensure maximum performance.

Utilizing Genset Controller that have been proven reliable in numerous applications for years, AMPJET makes the operators job as simple as, “PUSH-A-BUTTON”.

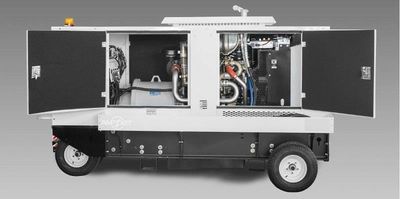

AMPJET®’s series of diesel engine powered 400Hz AC generators (Ground Power Units GPU’s) offer a cost effective alternative to running the APU on commercial aircraft. They come World-Ready in 60, 90, 120,140,180kVA sizes and with engine options to meet local emissions requirement. Our GPU’s are designed for use in extreme climates from scorching desert heat, to arctic cold and tropical rains; AMPJET GPU’s perform anywhere. specifications.

Features »

1. FUEL   AND VISIBITY BEACONS

2. ELECTRICAL   CONTROL PANEL ACCESS

3. 4 CORNER   MARKER LIGHTS

4. TOW BAR   BRAKE / ADJUSTABLE

5. 5TH WHEEL   STYLE UNDERCARRIAGE

6. HEAVY DUTY   14GA SHEET METAL ENCLOSURE

7. ZINC RICH 2   COAT POWDER COATING RUST PROTECTION

8. RUGGED 13”   DEEP MAIN FRAME RAILS W/ CORNER BUMPERS

9. MAIN CONTROL   PANEL  W/ WEATHER COVER

10. CONTROL PANEL

11. CORNER REFLECTORS

12. RUGGED 5/16” THICK STEEL CHASSIS

Controls »

1. 5” COLOR   DISPLAY – 7 CRITICAL METRICS AT-A-GLANCE

2. SIMPLE   PUSH-A-BUTTON - START

3. SIMPLE   PUSH-A-BUTTON - STOP

4. DEF STATUS   INDICATOR

5. MAIN SYSTEM   POWER SWITCH

6. WARNING   BEACON AND MARKER LIGHTS SWITCH

7. PRIMARY   OUTPUT CONTROLS

8. SECOND   OUTPUT CONTROLS (OPTIONAL)

9. ADDITIONAL   INFORMATION MENUS

10. DC OUTPUT CONTROLS (W/ DC OPTION)

11. AC / DC SELECTOR (W/ DC OPTION)

12. E+F BYPASS SWITCH (COVERED)

13.CURRENT LIMITING (DC OPTION ONLY) (COVERED)

Tier 3

•  Deutz (GPU-AD91DG)

Tier 4F / Stage 5

•  Perkins /JCB (GPU-AD90DG-T4F)

• Additional AC output 90kVA (GPU-AD5041)

• DC Output (TR) (GPU-AD28DG) Choose AC Output Cable

• 30’ (10m) 2/0 4X MIL-STD-5356-C with connector (GPU-A0033)

• 30’ (10m) 2/0 4X AWG with connector (GPU-AD5024) Other cable options and lengths available, inquire.

• 30’ (10m) 4/0 2X MIL-STD-5356-C with connector (GPU-0272) • 30’ (10m) 4/0 2X AWG with connector (GPU-AD5022) Other cable options and lengths available, inquire.

• Cable Connected Warning System (GPU-AD5013)

• Battery Switch (Required with AD5013) (GPU-AD5018)

• Digital Gateway / Telemetrics (GPU-AD5010)

• Premium Engine Warning Kit (GPU-AD5037)

• Auto-Sleep Feature (GPU-AD5044)

• 115VAC, 1500W, 60Hz, Auxiliary (GPU-AD5017) Select Body Options

• Stainless Steel Fuel Tank (GPU-A0029-SS)

• Corner Bumpers (GPU-AD5012)

• Cable Tray Rollers (GPU-AD5026)

• Foam Filled Tires (GPU-AD5043)

• Extreme CWK Deutz 90 Tier III (GPU-5038X)

• CWK Perkins 90 Tier IVF (GPU-5053)

• Extreme CWK Perkins 90 Tier IVF (GPU-AD5053X)

Custom kits for other engines available, inquire.

CHASSIS

Enclosure - 14 Gauge Steel - Easy Access

 Steering - Easy Maneuver 5th Wheel

 Wheels - Easy Pull 12" ( 305mm)

 Braking - Tow Bar Activated - Adjustable

 Engine / Generator Mounting - 4X Extreme Duty   Rubber Isolators

 Hitch - Heavy Duty Lunette Eye

 Forklift Pockets 8" x 4" ( 203 x 102mm)

 Tie Down Rings - 2 front / 2 rear

CONTROL PANEL

Controller - Intuitive - Digital

 Engine Monitoring - Battery Volts, Water   Temp, Oil Pressure, Fuel Level, Tachometer, Hour Meter

User interface - See 7 Vital Functions at A Glance

Power Output Monitoring - Output Volts,   Frequency, Power

Trouble Shooting Display - Warnings / Faults

Battery - 12V, 1000Amp CCA

Trouble Shooting Features - Numbered Wiring,   Wiring Diagrams

Operation History

ENGINE PROTECTION

Delayed Stop Turbo Protection

Full Application Approval

Over Speed Protection

Full Flow Fuel Filter

Full Flow Lubricating Oil Filter

Muffler

Engine Diagnostics

Engine Preheater

Low Oil Pressure Shut Down Switch (SDS)

SAFETY

E-Stop

Fire Extinguisher

Visibility Beacon

Reflectors - For Easy Visibility at Night (   10X )

Noise - Sound Suppression Foam Throughout   Engine Compartment

Parking Brake - Tow Bar Adjustable

PROTECTIVE COATINGS

Primer - Powder Coated Zinc Primer - All   Exterior Sheet Metal

 Top Coating - Powder Coated

 Standard Colors

PEACE OF MIND

Warranty - 2000 hrs - 2   Years*

Designed and Assembled in Canada

OPTIONS

Transformer Rectifier w/ 28V Output Cable

 TRU simultaneous  AC/DC out put

Dual Output - AC/AC

56 Volt Output - DC

270 Volt Output - D

Digital Gateway / Telematics   (GPS/GSM)(Cell/Network link) (GPU-AD5010)

Power Cables - 30' Standard MIL 5756 or AWG Output Cables (Custom lengths available)

Quick Breakaway Power Cables

Swivel Base for Quick Breakaway

Auxiliary Output - 120 VAC/ 1500W   (GPU-AD5017)

Cold Weather Kit (CWK) - Glow Plugs, Battery   Warmer, Block Heater (various part   numbers, inquire)

High Temp Water SDS

Low Coolant Level Shutdown

Air Intake Restriction Indicator

Low Fuel Warning

ENVIRONMENT

Temperature -40°F to 125°F (-40°C+52°C ) w/ Extreme Cold Weather Kit Option

High Altitude Performance
